6 Pack Diesel Oil Fuel Filter

Features: Easy installation. Good direct replacement of old or damaged ones. Perfect match for the original car. High quality products, stable performance and long service life, high reliability.

Function: Help block impurities and contaminants in your fuel before they can enter your engine,improve performance by ensuring a uniform fuel flow.

Description: Type: Fuel Filter Service Kit Fuel Type: Diesel Fitting Type: Cartridge

Part No: FD-4616

OE Part Number:

FD-4616

Package:

6x Fuel Filter Kit

Compatible with these models: (Compatibility is just for reference, please confirm your OE number Before Purchasing.) 6.0L Powerstroke Turbo Diesel Fuel Filter for Ford V8 engines For Ford F250 Super Duty 2003-2007 For Ford F350 Super Duty 2003-2007 For Ford F450 Super Duty 2003-2007 For Ford F550 Super Duty 2003-2007 For Ford Excursion 2003-2005 For 03-07 Ford 6.0L Powerstroke Diesel Trucks Also fits Ford LCF / Internation CityStar 4.5L Powerstroke Diesel VT275 Diesel

NOT FIT 2006 E450 6.0L

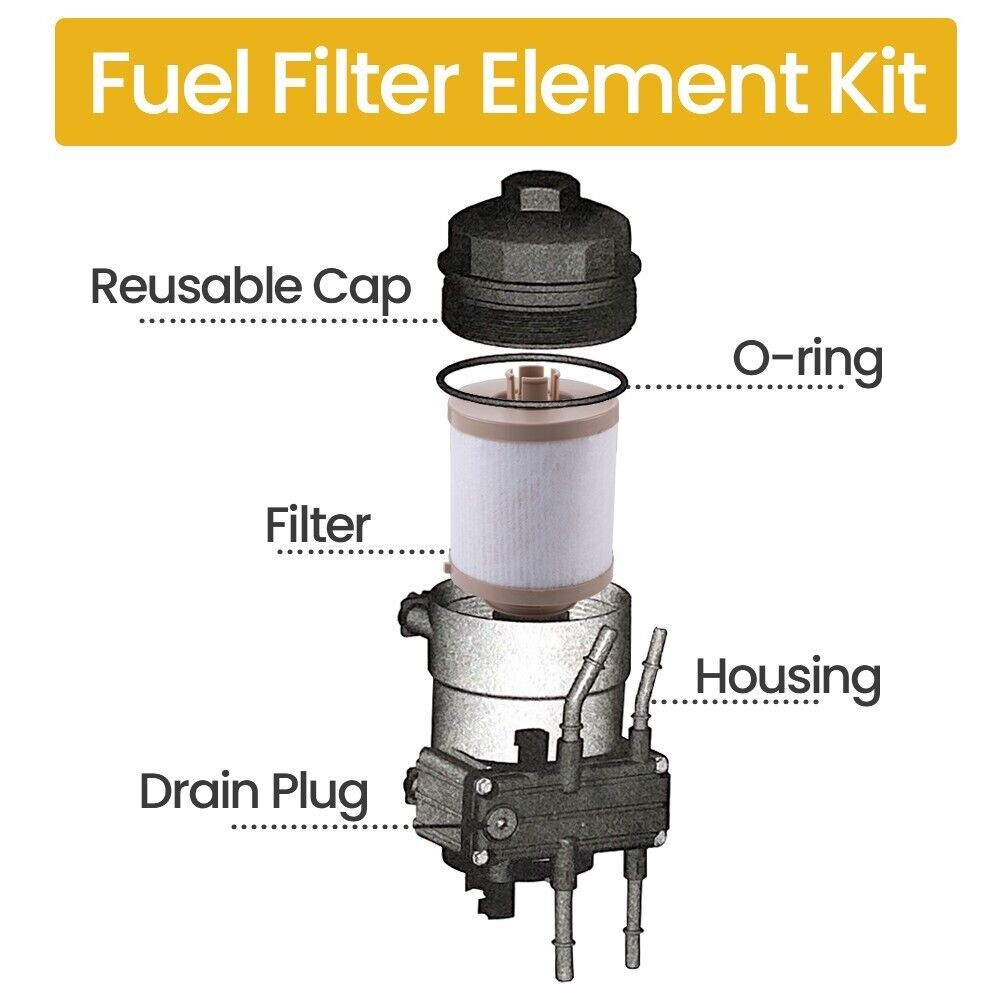

The primary fuel filter install:

1. Remove the drain plug uses a 6 mm Allen wrench for the water-fuel separator and drain the fuel into a container.

    Allow the Horizontal Fuel Conditioning Module to drain completely,then fish out the drain plug and dispose of the fuel.

2. Remove the primary fuel filter cap with a 36 mm socket.

3. Remove the fuel filter from the cap by simply pulling it out. There is a retaining clasp on the fuel filter that

    snaps into the fuel filter cap.Remove and replace the o-ring from the fuel filter cap.

4. Install the new fuel filter, minding the orientation of the locking clasp and the o-ring.

   The o-ring side of the fuel filter is not inserted into the cap. The fuel filter should lock into the cap.

   Lightly coat both o-rings (cap and bottom of filter) of the new fuel filter with clean motor oil before installing into the

   Horizontal Fuel Conditioning Module.  Torque cap to 19 lb-ft (25 N-m).

5. Reinstall the fuel-water separator drain plug.

The secondary fuel filter install: 1. Remove the cap with either a 24 mm socket or 1/2 inch square drive. 2. Remove and discard the used fuel filter. 3. Drain the fuel filter housing of any fuel.  Install the new fuel filter into the fuel filter housing. 4. Remove and replace the o-ring on the fuel filter cap. Lightly coat the o-ring with clean motor oil, then reinstall the cap. Torque to 10 lb-ft (14 N-m);   do not overtighten the cap.

5. Turn the key into the "run" position (as you would to initiate the glow plug sequence) for 30 seconds, then back to the "off" position.

   Repeat this procedure a minimum of 3 times in order to prime the fuel system before starting.

Note: --Please BE AWARE that the vehicle compatibility list on eBay may not be 100% accurate. Please Comfirm The Parts Number And Confirm This Item Fits Yours Before Purchasing. --Above listed items are a main reference, for detailed model, please use the year/make/model check finder and check the replace part numbers to confirm the compatibility before purchasing.

--If you have any issues with our product, please contact us immediately and we will do our best to resolve your issue.
